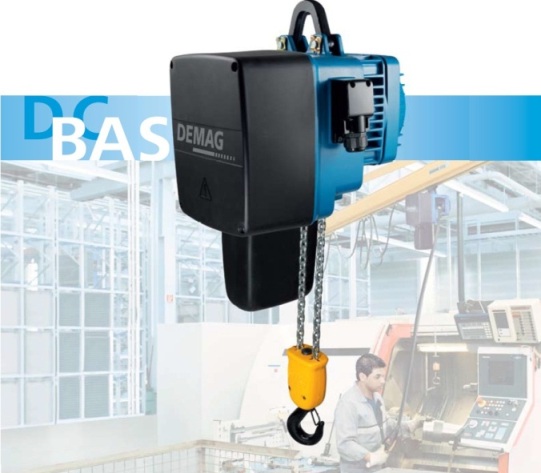

DEMAG Chain Hoist in Indonesia :
Are user friendly load handling products for a wide variety of applications.
Clear benefits:
1. The only chain hoists that has Double Speed up to 10/2.5m/min
2. Conical rotor brake motor for a long service life
3. 60% motor duty factor
4. Control pendant with emergency-stop as standard
5. Slipping Clutch : protection against extreme overload in accordance with relevant international safety regulations
6. Trolleys: push-travel or electric-travel trolleys available, as required with two speeds.
| Size | DC-Bas 1 | DC-Bas 2 | DC-Bas 5 | DC- Bas 10 | ||||
| Reeving | 1/1 | 2/1 | 1/1 | 2/1 | 1/1 | 2/1 | 1/1 | 2/1 |
| Load Capacity | 125 | 250 | 500 | 1000 | 2000 | |||
| FEM | 1Am | 1Am | 1Bm | 1Bm | ||||
| Hook Path (m) | 5m and 9m (longer hoo paths possible, please require) | |||||||
| Main Lifting Speed (50Hz)(m/min) | 8 | 4 | 10 | 5 | 10 | 5 | 8 | 4 |
| Creep Lifting Speed (50Hz)(m/min) | 2 | 1 | 3 | 1 | 3 | 1 | 2 | 1 |
| Duty Factor (%) | 60 (40/20) | |||||||
| Voltage/frequency (V/Hz) | 380/50 and 415/50 (different voltages possible, please enquire) | |||||||
| Weight (Kg) | 16 | 17 | 32 | 34 | 50 | 53 | 73 | 78 |
| Hook dimension c (mm) | 422 | 470 | 438 | 503 | 556 | 666 | 599 | 786 |
